Double Seaming Made Simple – Part 1

Double Seaming Made Simple
Friday, June 17, 2016

When it comes to metal food cans, the ability to lock-in and preserve the freshness of ingredients, while also keeping out unwanted elements such as microorganisms and oxygen – is a big advantage. The same can be said for the secure containment of internal carbonation and pressure in beverage cans.

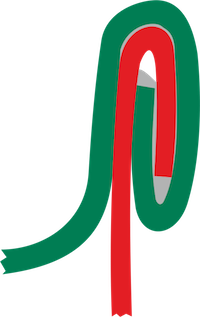

Double Seams

The double seam, found today on virtually all food and beverage cans is a simple and proven way to provide such a hermetic seal. This process is completed on as many as five hundred billion cans annually. However, while the end goal is simple, the process can still appear very complex, particularly to brands who are new to the industry or to working with metal packaging.

The formation of a double seam results from two sequential operations that have a dependent relationship with the aim of joining an end, or lid, to a can body in such a way as to produce the hermetic seal. Once the can end has been placed onto the can (called the make-up point), the first operation seam begins the seaming process by gradually curling the outside curled edge of the end, under the can flange, whilst also curling the can flange downwards at the same time. The second operation finishes this process off by fully compacting the seam and all the included layers of metal together to create the hermetic seal. The ends are supplied with a thin layer of gasket material, which fills any voids created within the seam to make it truly gas-tight.

Getting The Best Results

The world of double seaming may seem complicated, but in the following series we will outline a few key steps will lend you a better sense of how to achieve a fault-free seal.
